Rotary X-series and direct spray Z-series options
Workshop Auxiliary Equipment

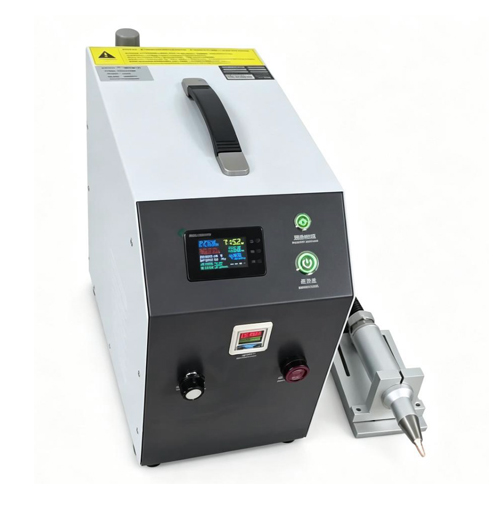

Plasma Corona Surface Treatment Machine
Plasma corona surface treatment machine for improving surface adhesion before coating, printing, bonding, and finishing processes.
Key Points
Product Features and Selling Points
AC220V 50Hz input power
1200 W maximum power
Compact 400 x 210 x 410 mm host
Suitable for coating, printing and bonding pretreatment
Applications
Where This Product Is Used
Surface pretreatment before painting, coating, printing, adhesive bonding, packaging, plastics processing, electronics manufacturing, and industrial finishing lines.
Customization
OEM and Custom Options
Nozzle type, treatment distance, cable length, fixture, automation integration, and application-specific process layout can be customized. Please provide material, treatment width, speed and line layout for selection.
Product Images
Detail Views and Reference Photos
Specification Table
Technical Parameters
| Model | Series | Input Power | Standard Treatment Diameter | Max Power | Best Treatment Distance | Max Treatment Speed | Working Frequency | Air Source Pressure | Working Pressure | High-voltage Cable | Host Weight | Host Size | Temperature Range |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| JY-901A-1200 | Rotary X Series | AC220V 50Hz | 56 mm | 1200 W | 25-80 mm | 0.2 m/s | 20-30 Hz | >=0.5 MPa | >=0.3 MPa | 3 m | 12 kg | 400 x 210 x 410 mm | -10 C to +50 C |
| JY-901B-1200 | Direct Spray Z Series | AC220V 50Hz | 6 mm | 1200 W | 6-12 mm | 0.5 m/s | 20-30 Hz | >=0.5 MPa | >=0.3 MPa | 3 m | 12 kg | 400 x 210 x 410 mm | -10 C to +50 C |
Specifications are translated and organized from the supplied PPT. Treatment performance depends on material type, distance, speed, and surface condition.
Product Details
Technical and Product Information
Plasma Corona Surface Treatment Machine is used to improve material surface energy and adhesion performance before coating, printing, bonding, and finishing processes.

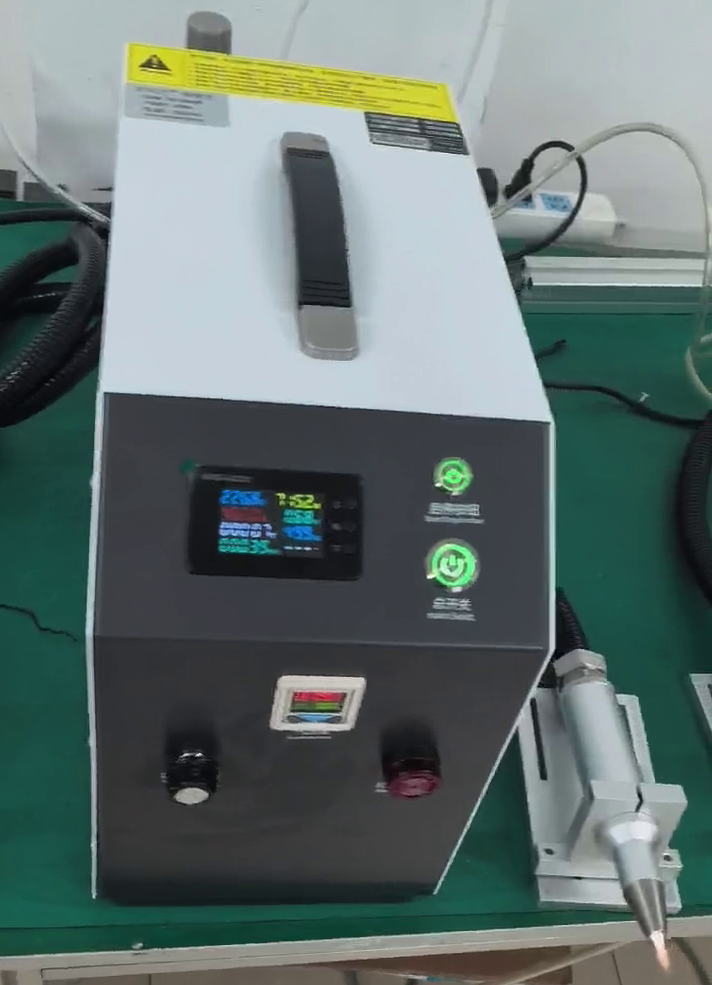

The supplied PPT includes rotary X-series and direct spray Z-series configurations, suitable for different processing distances and treatment requirements.
