Reduces cleanroom door opening frequency
Cleanroom Equipment
Pass Box

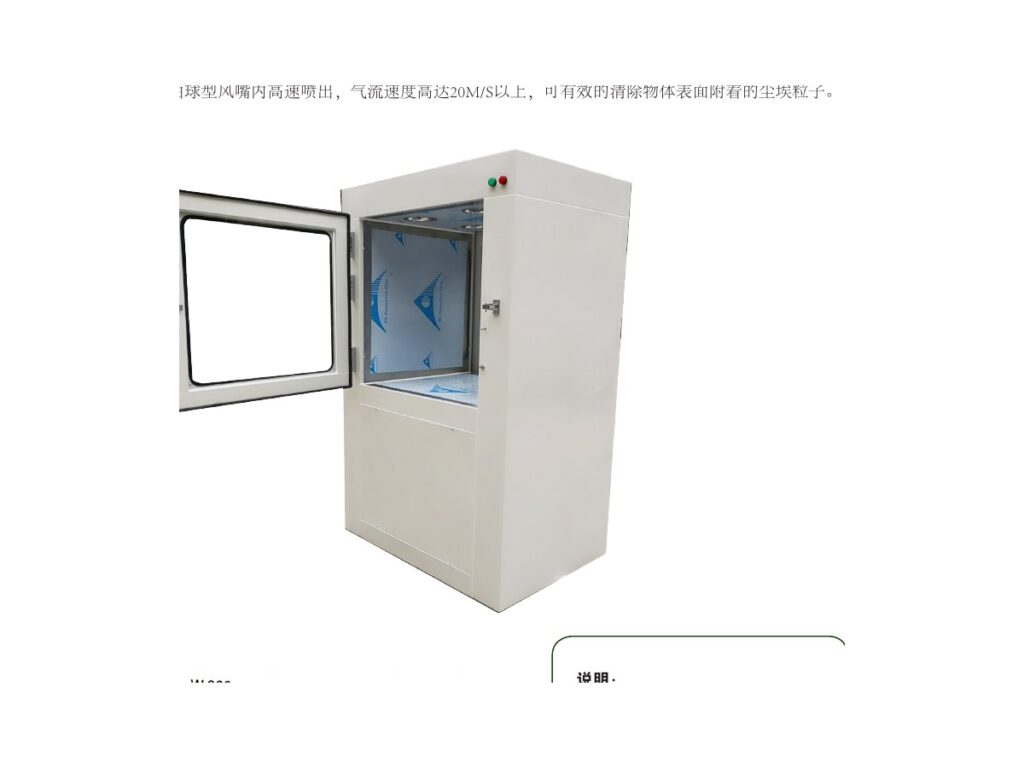

Pass box for transferring small items between clean and non-clean areas while reducing cleanroom door openings.
Key Points
Product Features and Selling Points
Mechanical or electronic interlock options

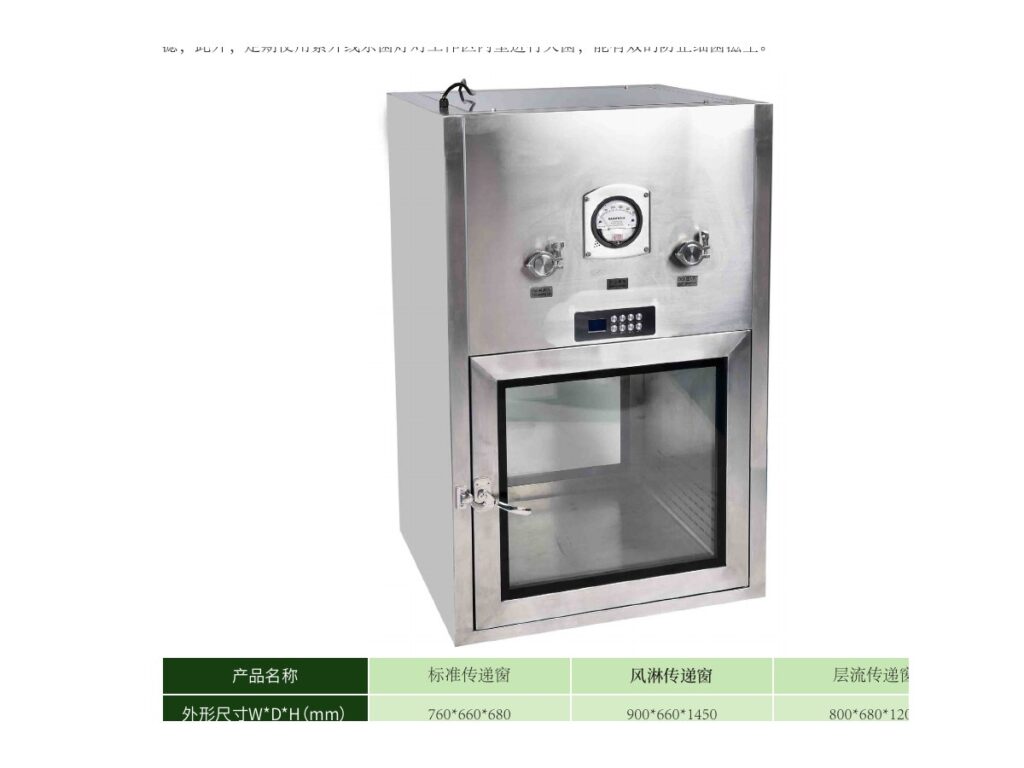

Standard, air shower, and laminar flow versions
Optional UV lamp, intercom, and roller conveyor
Available in full stainless steel or powder-coated construction
Applications
Where This Product Is Used
Microelectronics, biological laboratories, pharmaceutical plants, hospitals, food processing, LCD production, electronics factories, and cleanroom material transfer points.
Customization
OEM and Custom Options
Mechanical interlock, electronic interlock, UV sterilization lamp, intercom, built-in roller, stainless steel body, powder-coated outer shell, standard pass box, air shower pass box, and laminar flow pass box options are available.
Product Images
Detail Views and Reference Photos
Specification Table
Technical Parameters
| Model | Standard Pass Box | Air Shower Pass Box | Laminar Flow Pass Box |
|---|---|---|---|
| External Size W x D x H (mm) | 760 x 660 x 680 | 900 x 660 x 1450 | 800 x 680 x 1200 |
| Internal Size W x D x H (mm) | 600 x 600 x 600 | 600 x 600 x 600 | 600 x 600 x 600 |
| Outer Casing | Powder-coated cold-rolled steel or full stainless steel | Powder-coated cold-rolled steel or full stainless steel | Powder-coated cold-rolled steel or full stainless steel |
| Inner Wall | Stainless steel | Stainless steel | Stainless steel |
| Door Interlock | Mechanical or electronic interlock | Mechanical or electronic interlock | Mechanical or electronic interlock |
| Power Supply | 220 V / 50 Hz | 220 V / 50 Hz | 220 V / 50 Hz |
| Nozzle Quantity | N/A | 4 pcs | N/A |
| Fan Power | N/A | 0.37 kW x 1 | According to laminar configuration |
| Filtration | Optional | HEPA filter, efficiency >99.9% x 1 | HEPA filter laminar airflow |
Source data translated and organized from the supplied PDF. Optional accessories include pressure gauge, intercom, UV lamp, and roller conveyor.
Product Details
Technical and Product Information
Pass Box is used for small item transfer between different cleanliness zones. It minimizes direct door opening and helps reduce contamination risk in controlled environments.
