H10, H11 and H13 grades available
Cleanroom Filtration
Mini-Pleat HEPA Filters H10-H13
Mini-pleat HEPA filter series with aluminum frames for cleanroom terminal filtration and high-efficiency air purification.
Key Points
Product Features and Selling Points
Aluminum frame construction
Compact mini-pleat structure
Suitable for terminal filtration
Custom sizes available
Applications
Where This Product Is Used
Cleanrooms, FFU units, clean benches, clean booths, HVAC terminal filtration, electronics plants, pharmaceutical facilities, and precision manufacturing areas.
Customization
OEM and Custom Options
Custom dimensions, thickness, gasket type, frame structure, efficiency grade, and airflow can be produced according to project requirements.

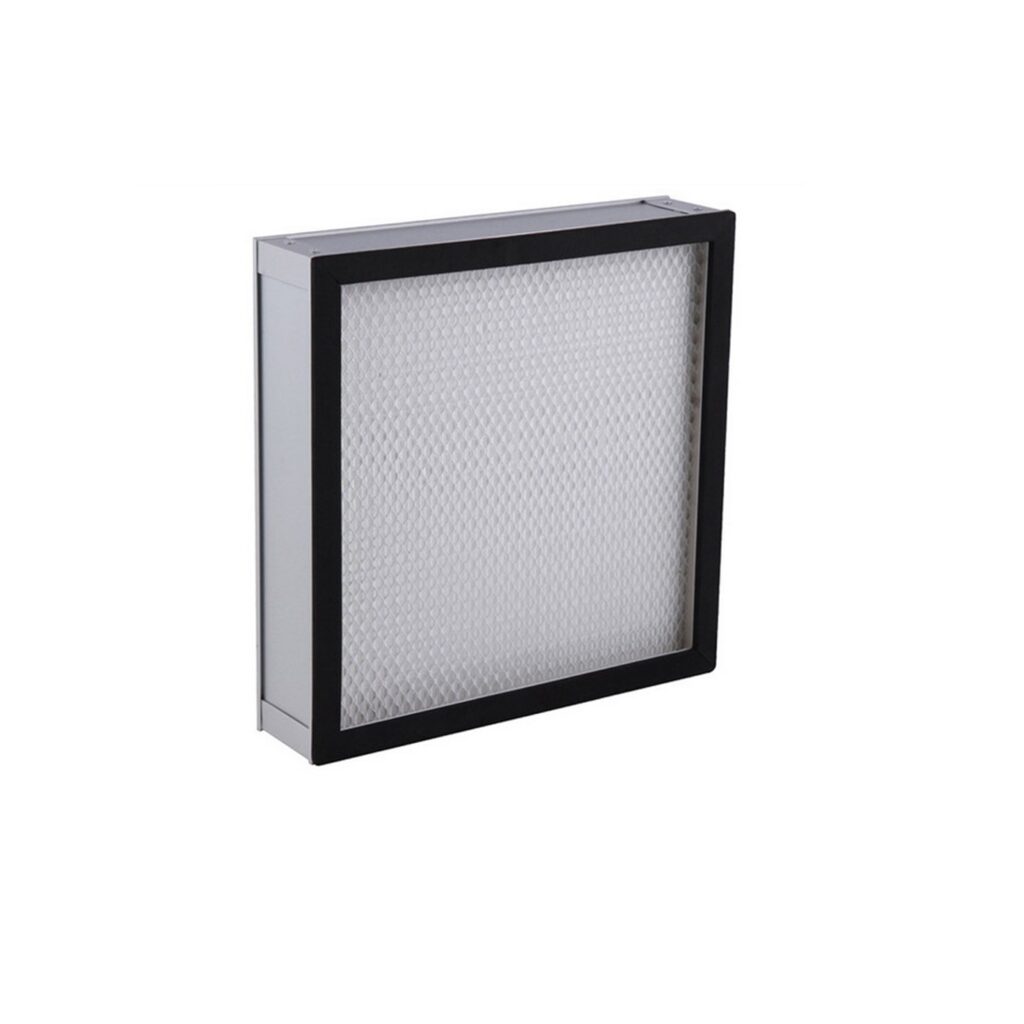

Product Images
Detail Views and Reference Photos
Specification Table
Technical Parameters
| Grade | Efficiency | Frame Material | Size | Airflow | Initial / Final Resistance | Notes |
|---|---|---|---|---|---|---|

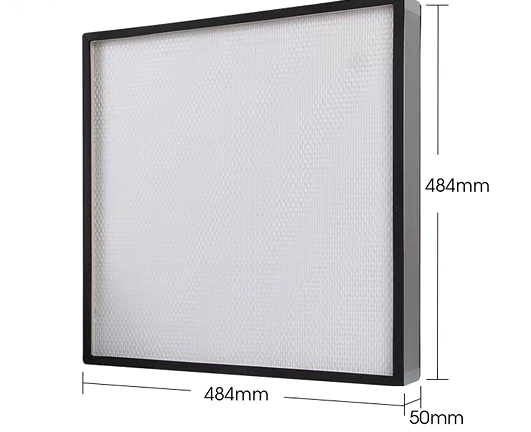

| H10 | 99.9% | Aluminum frame | L484 x B484 x D50 mm | 500 m3/h | 100 Pa / 350 Pa | Custom size available |
| H10 | 99.9% | Aluminum frame | L484 x B484 x D70 mm | 750 m3/h | 100 Pa / 350 Pa | Custom size available |
| H10 | 99.9% | Aluminum frame | L484 x B484 x D90 mm | 500 m3/h | 100 Pa / 350 Pa | Custom size available |
| H11 | 99.99% | Aluminum frame | L484 x B484 x D70 mm | 750 m3/h | 100 Pa / 350 Pa | Custom size available |
| H11 | 99.99% | Aluminum frame | L484 x B484 x D70 mm | 500 m3/h | 100 Pa / 350 Pa | Custom size available |
| H11 | 99.99% | Aluminum frame | L484 x B484 x D90 mm | 750 m3/h | 100 Pa / 350 Pa | Custom size available |
| H13 | 99.999% | Aluminum frame | L484 x B484 x D50 mm | 500 m3/h | 100 Pa / 350 Pa | Custom size available |
| H13 | 99.999% | Aluminum frame | L484 x B484 x D70 mm | 750 m3/h | 100 Pa / 350 Pa | Custom size available |
| H13 | 99.999% | Aluminum frame | L484 x B484 x D90 mm | 500 m3/h | 100 Pa / 350 Pa | Custom size available |
Data translated and organized from the supplied filter specification PPT. Efficiency values and airflow data follow the source material. Non-standard dimensions can be customized.
Product Details
Technical and Product Information
Mini-Pleat HEPA Filters are designed for cleanroom terminal filtration, high-efficiency HVAC systems, and controlled manufacturing environments. The series covers H10, H11, and H13 grades with aluminum frame construction.
Special sizes can be customized for FFU units, clean benches, clean booths, and project-specific air supply modules.
