Available in F5, F6, F7, F8, and F9 grades
Cleanroom Filtration
Medium Efficiency Pocket Bag Filters F5-F9
F5-F9 pocket bag filters with aluminum or galvanized frames for cleanroom and HVAC intermediate filtration.
Key Points
Product Features and Selling Points
Aluminum or galvanized frame options

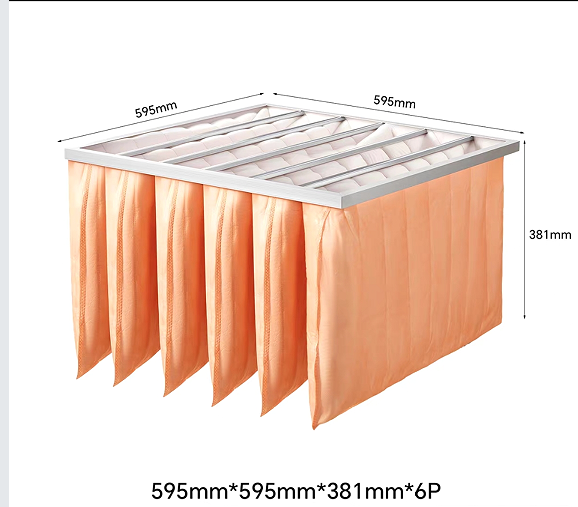

Standard 595 x 595 x 381 mm 6-pocket configuration
Bag count and bag depth can be customized
Designed for 2500-3400 m3/h airflow range
Applications
Where This Product Is Used
Cleanroom air handling units, HVAC systems, electronics manufacturing, pharmaceutical facilities, food processing plants, and industrial workshop air purification.
Customization
OEM and Custom Options
Frame material, bag count, bag depth, dimensions, efficiency grade, and packing can be customized.

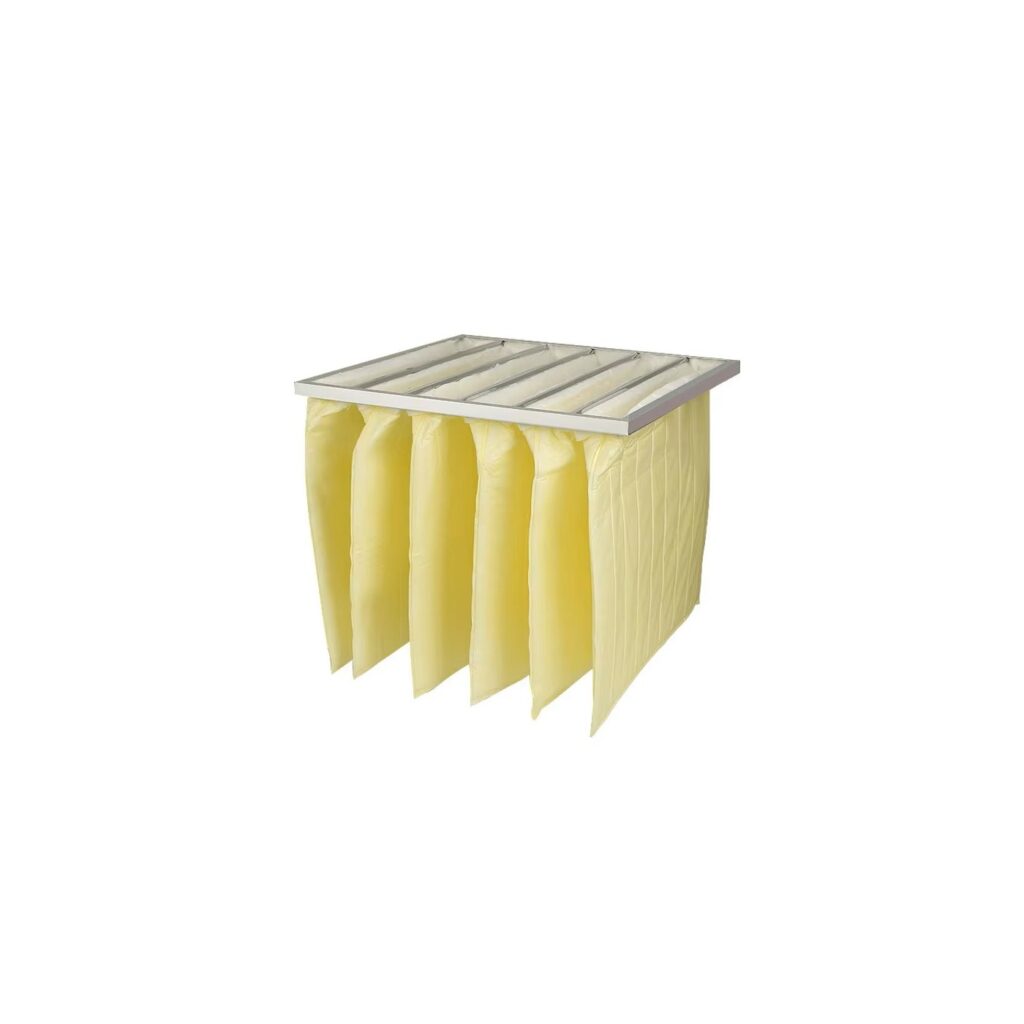

Product Images
Detail Views and Reference Photos
Specification Table
Technical Parameters
| Grade | Efficiency | Frame Material | Standard Size | Airflow | Initial / Final Resistance | Notes |
|---|---|---|---|---|---|---|
| F5 | 55% | Aluminum or galvanized frame | L595 x B595 x D381 mm x 6P | 2500-3400 m3/h | 60 Pa / 250 Pa | Custom size, bag count and bag depth available |
| F6 | 65% | Aluminum or galvanized frame | L595 x B595 x D381 mm x 6P | 2500-3400 m3/h | 60 Pa / 250 Pa | Custom size, bag count and bag depth available |
| F7 | 75% | Aluminum or galvanized frame | L595 x B595 x D381 mm x 6P | 2500-3400 m3/h | 60 Pa / 250 Pa | Custom size, bag count and bag depth available |
| F8 | 85% | Aluminum or galvanized frame | L595 x B595 x D381 mm x 6P | 2500-3400 m3/h | 60 Pa / 250 Pa | Custom size, bag count and bag depth available |
| F9 | 95% | Aluminum or galvanized frame | L595 x B595 x D381 mm x 6P | 2500-3400 m3/h | 60 Pa / 250 Pa | Custom size, bag count and bag depth available |
Data translated and organized from the supplied filter specification PPT. The original table describes F5-F9 medium efficiency bag filters. Non-standard dimensions, bag quantity and bag depth can be customized.
Product Details
Technical and Product Information
Medium Efficiency Pocket Bag Filters are used as intermediate filters in cleanroom, HVAC, and industrial ventilation systems. The series covers F5, F6, F7, F8, and F9 grades with the same common frame size and customizable bag count or bag depth.
They are suitable for protecting downstream HEPA filters and improving air quality in controlled workshops.
