Low resistance and long working life
Cleanroom Filtration
Medium Efficiency Combined Filter
Low-resistance medium efficiency combined filter for HEPA pre-filtration and clean air systems.
Key Points
Product Features and Selling Points
Simple structure with competitive cost
PP fiber paper media
Effective pre-filtration before HEPA stages
Special size available upon request
Applications
Where This Product Is Used
Hospitals, electronics plants, pharmaceutical air systems, bioengineering facilities, and pre-filtration stages before HEPA filters.
Customization
OEM and Custom Options
Custom dimensions, frame materials, sealing options, and airflow configurations can be prepared based on project requirements.

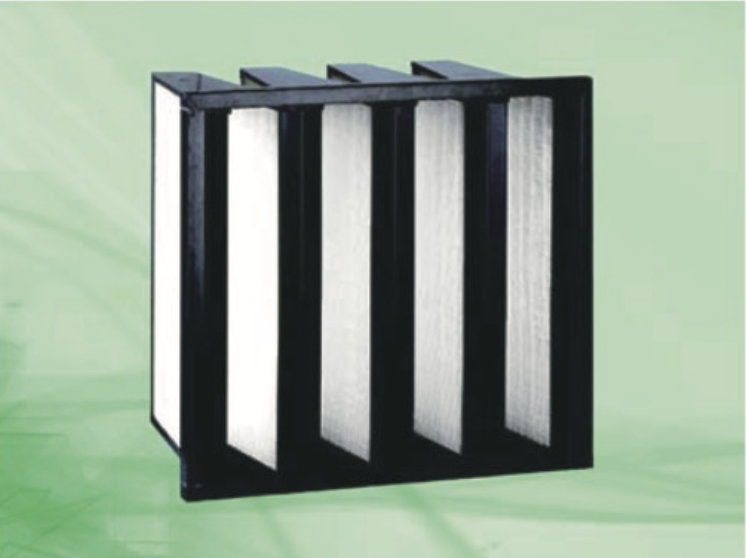

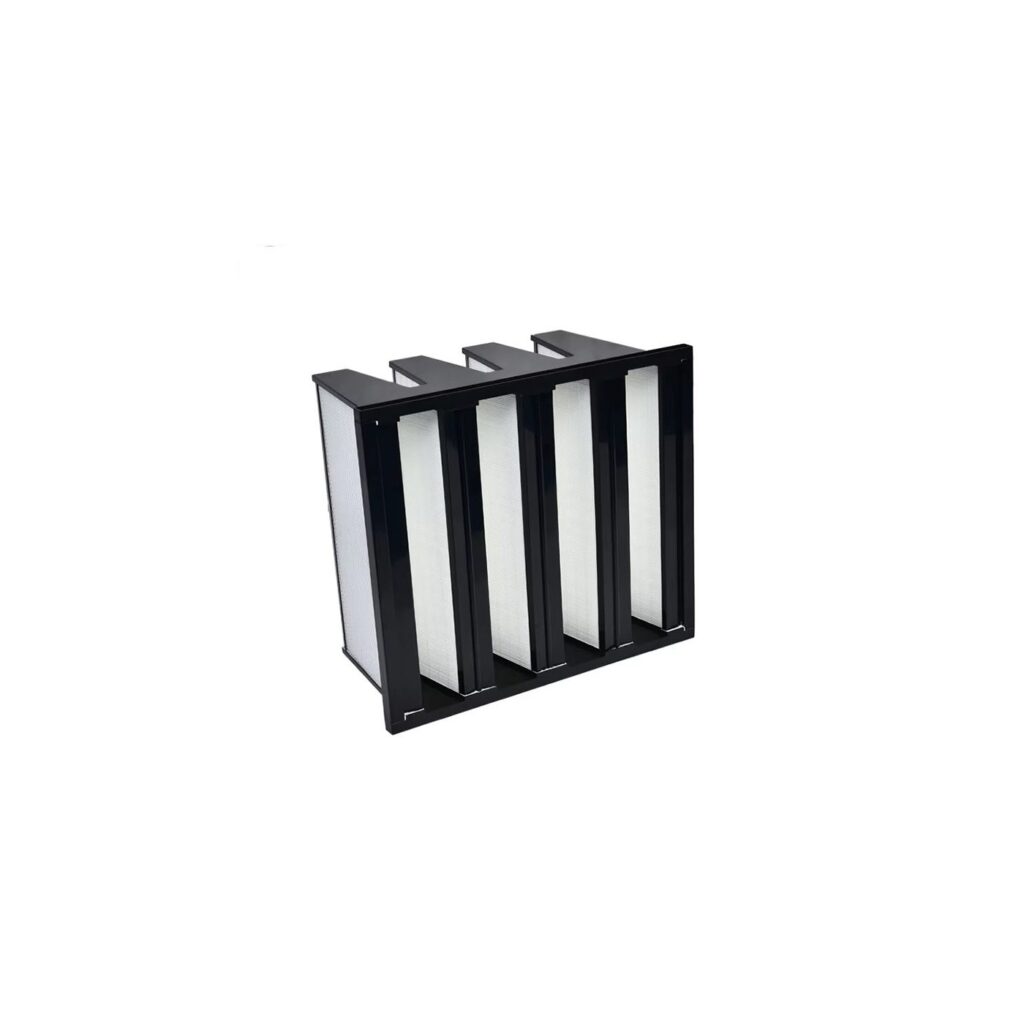

Product Images
Detail Views and Reference Photos
Specification Table
Technical Parameters
| Type | Dimensions (mm) | Rated Air Flow (m3/h) | Initial Resistance (Pa) | Average Arrestance |
|---|---|---|---|---|
| Medium Efficiency Combined Filter | 595 x 595 x 295 | 3600 | <=120 | <=95% |
| Medium Efficiency Combined Filter | 295 x 595 x 295 | 1800 | <=120 | <=95% |
According to the brochure, this product can be used as a HEPA pre-filter or as a terminal filter in areas where the cleanliness requirement is moderate. Media is PP fiber paper and special sizes can be made on request.

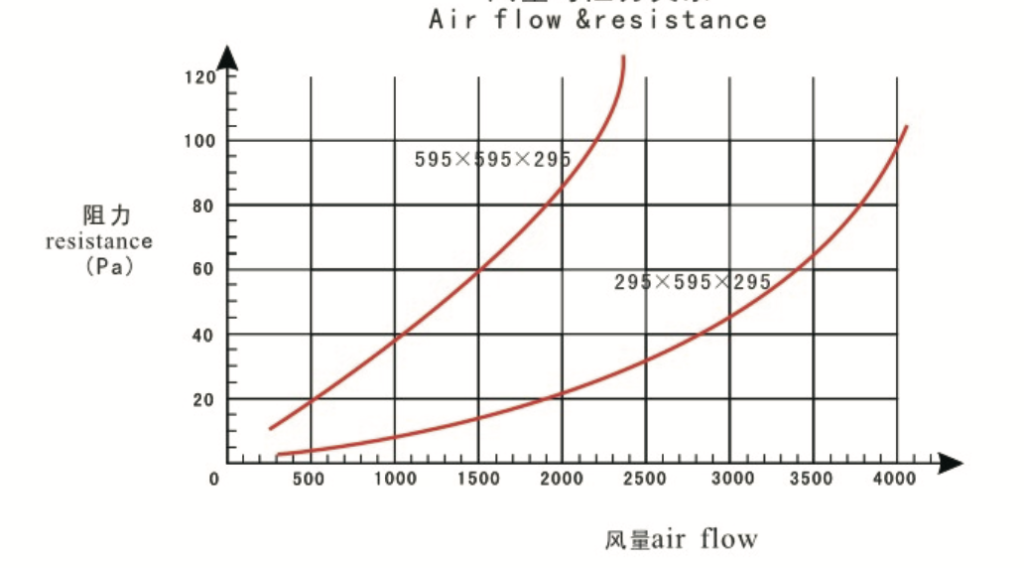

Performance Charts
Reference Curves and Data Charts
Product Details
Technical and Product Information
Medium Efficiency Combined Filter is used as a pre-filtration stage before HEPA filters and can also serve as a terminal filter where the required cleanliness level is moderate.
Main Features
- Low resistance and long working life
- Simple structure with competitive cost
- PP fiber paper media
- Effective removal of particles larger than 0.5 microns
Application Guidance
The brochure describes this product as a practical choice for hospital air systems, electronics manufacturing environments, pharmaceutical facilities, and bioengineering ventilation systems. It also provides clear protection for downstream HEPA filters and helps extend service life in multi-stage air handling systems.
Special sizes are available upon request.
