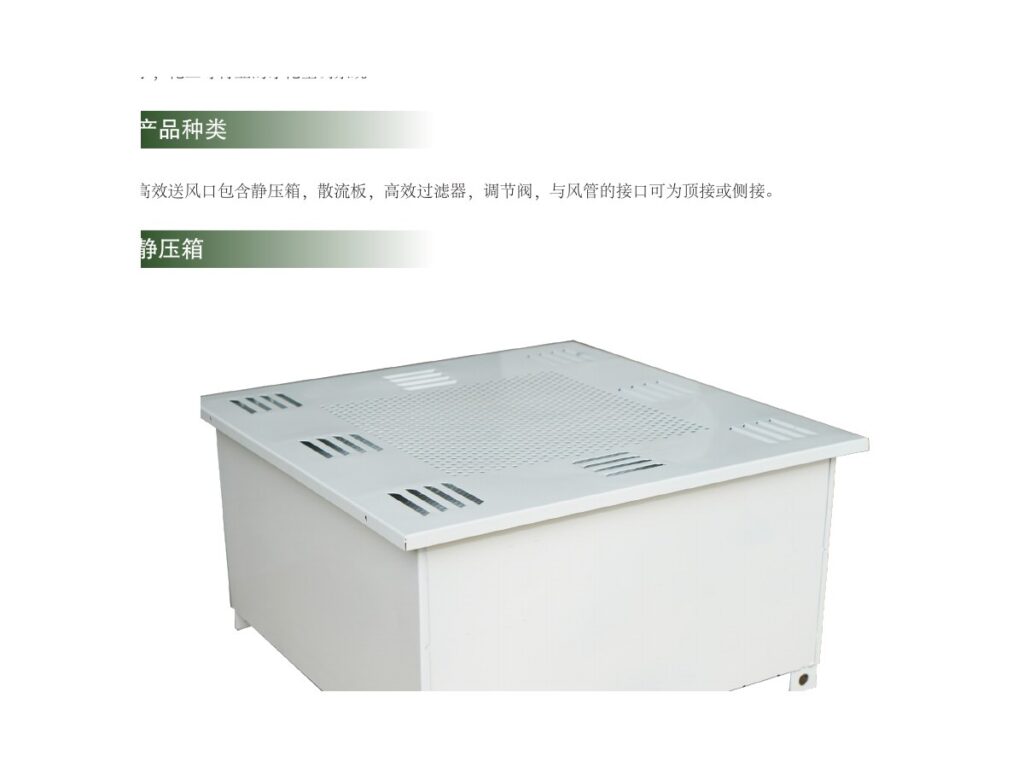

HEPA Air Supply Outlet
Terminal high-efficiency air supply outlet for cleanroom HVAC systems from Class 1,000 to Class 100,000 areas.
Key Points
Product Features and Selling Points
Easy installation and filter replacement
Static pressure box, diffuser, HEPA filter, and damper assembly
Top or side duct connection options
Custom outlet dimensions available
Applications
Where This Product Is Used
Pharmaceutical, healthcare, precision electronics, chemical, laboratory, and cleanroom air-conditioning terminal filtration systems.
Customization
OEM and Custom Options
Top connection, side connection, static pressure box, diffuser plate, HEPA filter, damper, casing material, and non-standard size options can be customized.
Product Images
Detail Views and Reference Photos
Specification Table
Technical Parameters
| Model | 320 Type | 484 Type | 610 Type | 630 Type |
|---|---|---|---|---|
| Outer Box Size (mm) | 370 x 370 x 350 | 534 x 534 x 350 | 660 x 660 x 300 | 680 x 680 x 300 |
| HEPA Filter Size (mm) | 320 x 320 x 80 | 484 x 484 x 80 | 610 x 610 x 80 | 630 x 630 x 80 |
| Diffuser Plate Size (mm) | 420 x 420 x 15 | 585 x 585 x 15 | 710 x 710 x 15 | 730 x 730 x 15 |
| Damper Size (mm) | Side opening Phi 200 | Side opening 320 x 200 | Top opening Phi 250 | Top opening Phi 300 |
| Airflow (m3/h) | 500 | 1000 | 1000 | 1500 |
Source data translated and organized from the supplied PDF. Non-standard sizes can be customized.
Performance Charts
Reference Curves and Data Charts
Downloads
Technical Documents
PDF
WISHE_TECH_HEPA_Supply_Air_Outlet_Specification
Enter your email address to download this product document.
Product Details
Technical and Product Information

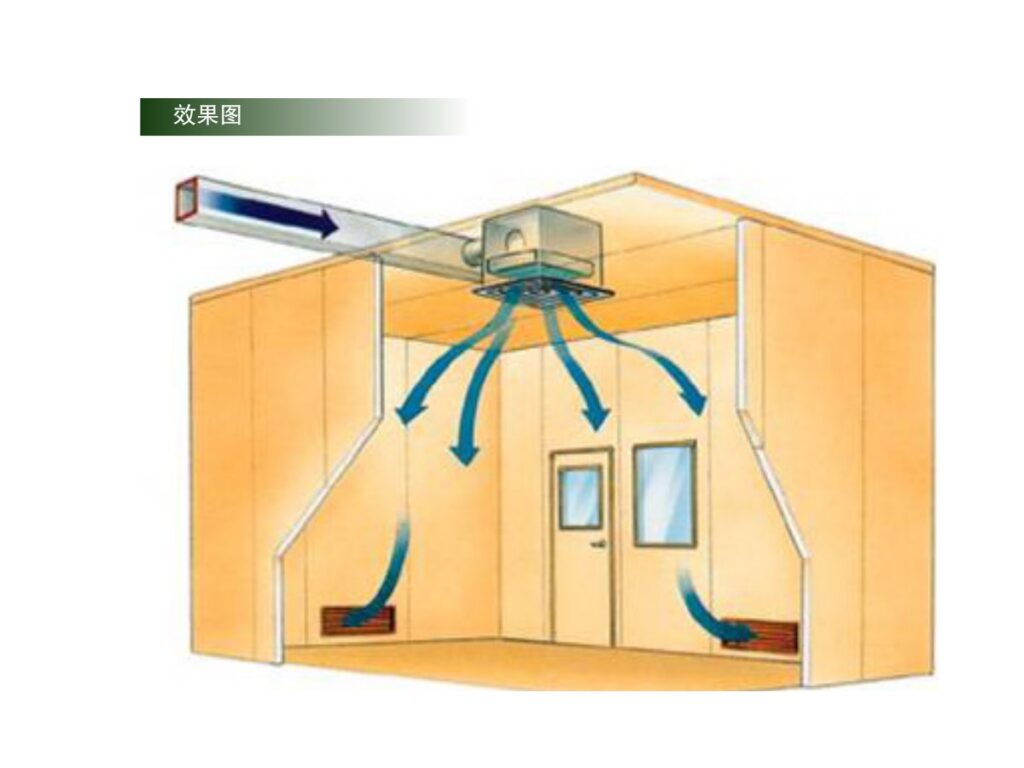

HEPA Air Supply Outlet is used as a terminal filter device in cleanroom air-conditioning systems. It combines a static pressure box, diffuser plate, HEPA filter, and damper for stable clean air supply.
