Integrated fan and HEPA filtration module
Cleanroom Equipment
FFU Fan Filter Unit
Self-powered fan filter unit with HEPA filtration for modular cleanroom terminal air supply.
Key Points
Product Features and Selling Points
Uniform clean air output around 0.45 m/s +/-10%
Low vibration and low noise design
Optional speed control and constant airflow control
Filter efficiency up to 99.999% @ 0.3 um depending on configuration
Applications
Where This Product Is Used
Photoelectric production, precision electronics, LCD glass, semiconductor cleanrooms, clean booths, clean benches, and Class 100 to Class 1000 clean areas.
Customization
OEM and Custom Options
Module size, airflow, EC/AC power, body material, pressure gauge, remote controller, inlet flange, and pre-filter options can be customized.
Product Images
Detail Views and Reference Photos
Specification Table
Technical Parameters

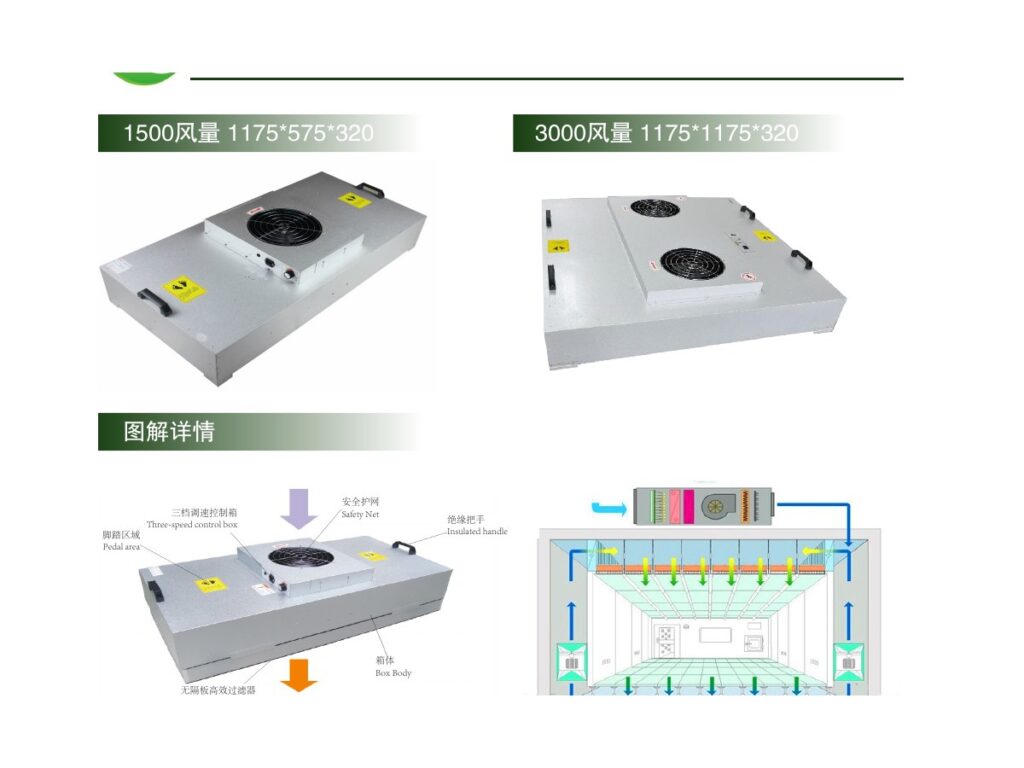

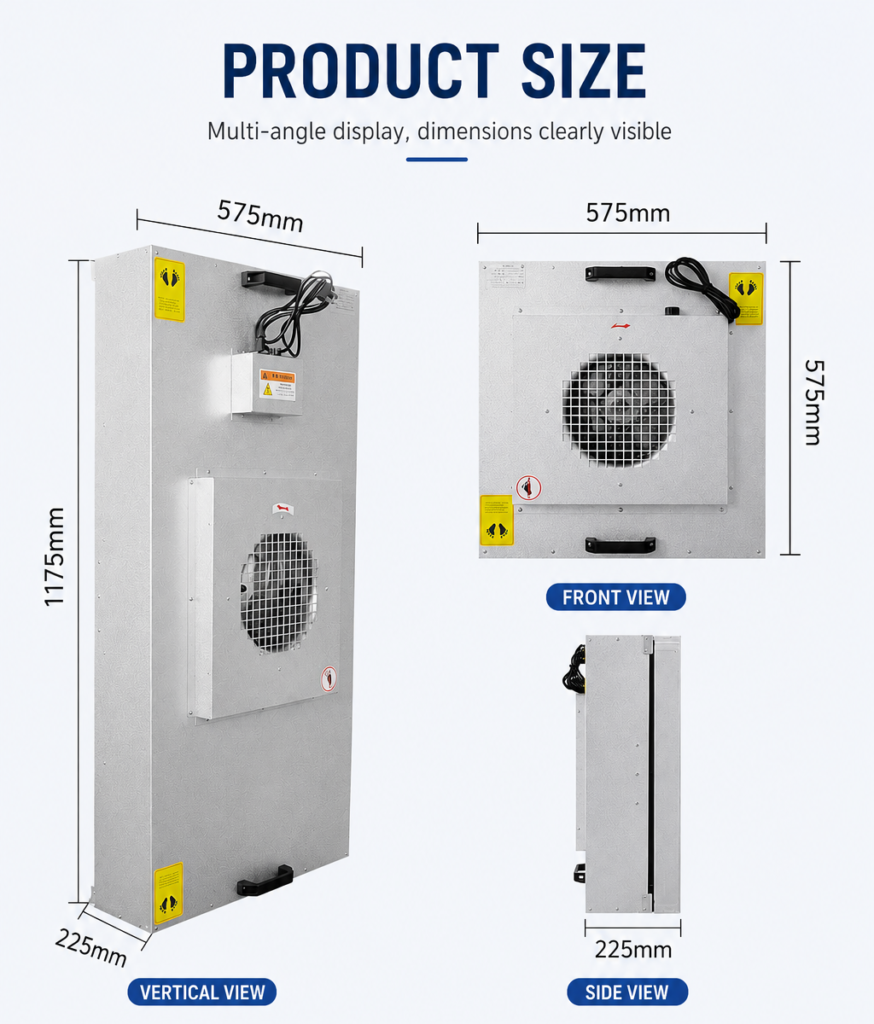

| Module Size (mm) | 1175 x 575 x 320 | 1175 x 1175 x 320 | 575 x 575 x 320 |
|---|---|---|---|
| Airflow (m3/h) | 1200-1500 | 2500-3000 | 500-700 |
| External Static Pressure (Pa) | 110 | 150 | 60 |
| Body Material | Aluminum-zinc coated steel, optional stainless steel or powder-coated cold plate | Aluminum-zinc coated steel, optional stainless steel or powder-coated cold plate | Aluminum-zinc coated steel, optional stainless steel or powder-coated cold plate |
| Standard Power | 220 V, 50/60 Hz | 220 V, 50/60 Hz | 220 V, 50/60 Hz |
| Filter Efficiency | 99.99% @ 0.3 um | 99.99% @ 0.3 um | 99.99% @ 0.3 um |
| Power Consumption (W) | 140 | 230 | 120 |
| Weight (kg) | 25 | 40 | 15 |
| Vibration (mm/s) | <=0.5 | <=0.9 | <=0.3 |
| Noise (dB) | 46-52 | 49-54 | 46-50 |
Optional items include differential pressure gauge, remote controller, inlet flange, and pre-filter. Source data translated and organized from the supplied PDF.
Product Details
Technical and Product Information

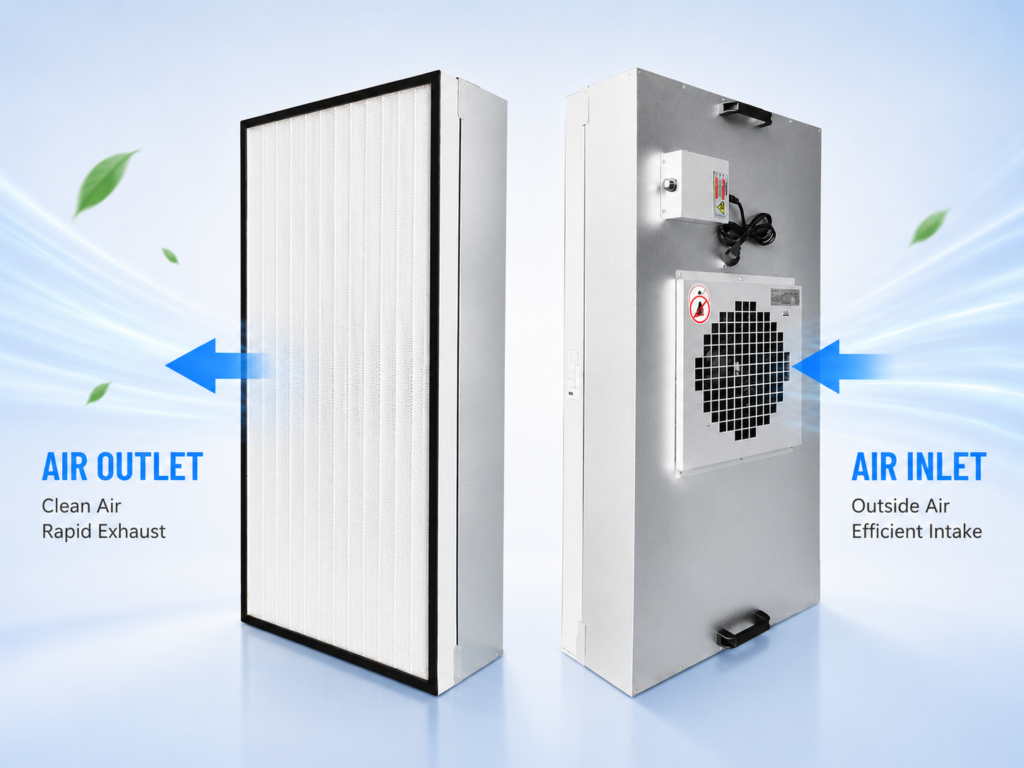

FFU is a powered modular terminal air supply unit. It draws air from the top, filters it through HEPA media, and delivers uniform clean air into cleanroom spaces.
