Class 100 working cleanliness at 0.3 um
Cleanroom Equipment
Clean Bench
Horizontal or vertical laminar flow clean bench for creating a high-cleanliness work area.
Key Points
Product Features and Selling Points
Horizontal and vertical laminar airflow options
H13-H14 high-efficiency filtration
Stainless steel work surface
Custom size and workstation layout available
Applications
Where This Product Is Used
Laboratories, electronics assembly, precision manufacturing, microbiology work, cleanroom support workstations, and local sterile or dust-free operating areas.
Customization
OEM and Custom Options
Single-person, double-person, horizontal-flow, vertical-flow, stainless worktop, caster, lighting, power socket, and non-standard size options can be customized.

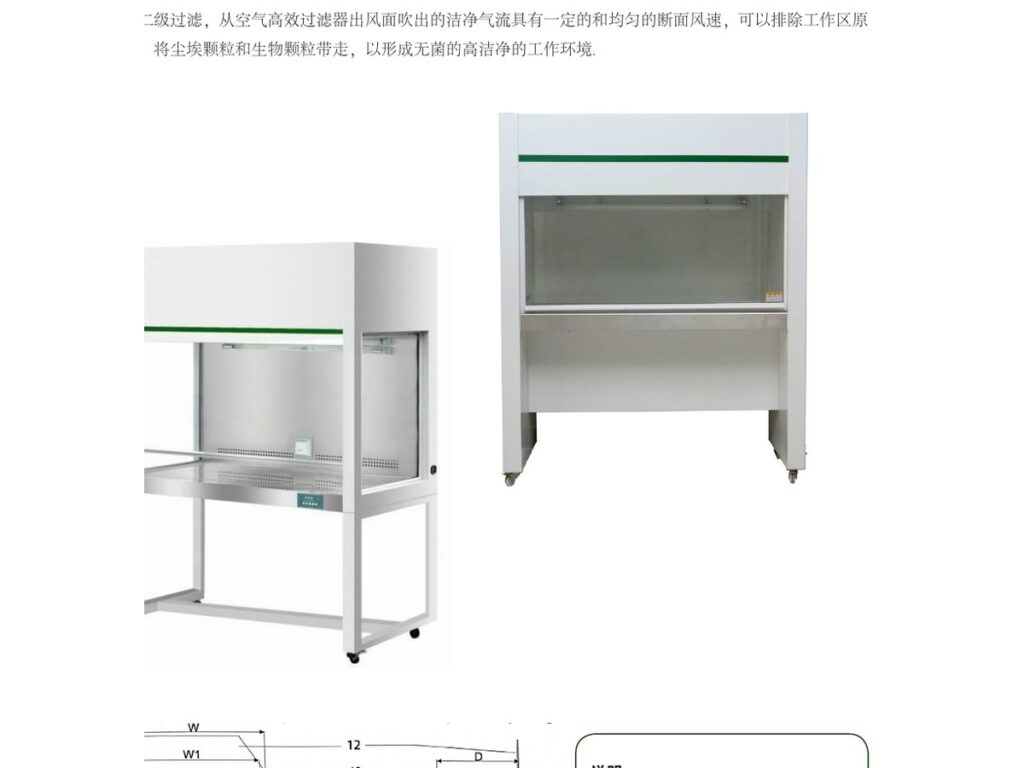

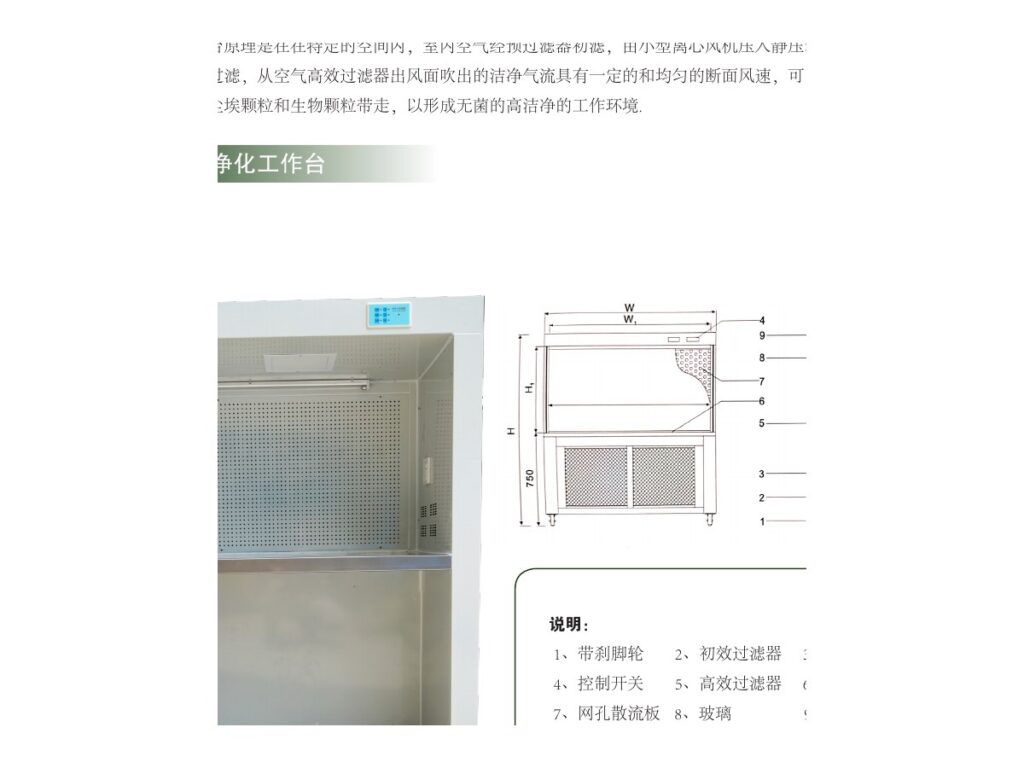

Product Images
Detail Views and Reference Photos
Specification Table
Technical Parameters
| Model | Single-Person Horizontal Flow Class 100 | Double-Person Horizontal Flow Class 100 | Double-Person Vertical Flow Class 100 |
|---|---|---|---|
| External Size W x D x H (mm) | 1000 x 850 x 1500 | 1200 x 850 x 1500 | 1500 x 700 x 1800 |
| Work Area W x D x H (mm) | 970 x 600 x 600 | 1170 x 600 x 600 | 1400 x 600 x 600 |
| Cleanliness Class | Class 100 @ 0.3 um | Class 100 @ 0.3 um | Class 100 @ 0.3 um |
| Rated Airflow | 900 m3/h | 1200 m3/h | 1500 m3/h |
| Average Air Velocity | 0.3-0.6 m/s | 0.3-0.6 m/s | 0.3-0.6 m/s |
| Filter Efficiency | 99.99% @ 0.3 um, H13-H14 | 99.99% @ 0.3 um, H13-H14 | 99.99% @ 0.3 um, H13-H14 |
| Illumination | >=300 lx | >=300 lx | >=300 lx |
| Power Consumption | 150 W | 200 W | 230 W |
| Noise | <=65 dB | <=65 dB | <=65 dB |
| Power Supply | 220 V / 50 Hz | 220 V / 50 Hz | 220 V / 50 Hz |
| Lamp | 20 W x 1 | 30 W x 1 | 40 W x 1 |
Source data translated and organized from the supplied PDF. Casing can be powder-coated cold-rolled steel or stainless steel; work surface is brushed stainless steel.
Performance Charts
Reference Curves and Data Charts
Downloads
Technical Documents
PDF
WISHE_TECH_Clean_Bench_Specification
Enter your email address to download this product document.
Product Details
Technical and Product Information
Clean Bench uses pre-filtration, centrifugal fan airflow, and HEPA filtration to deliver uniform clean air across the working area, removing particles and supporting local clean operation.
