Cleanroom Equipment

Cargo Shower Room

Cargo shower room for cleaning materials, trolleys, and packaged goods before they enter cleanroom areas.

Request a Quote Contact Us

Cargo shower room cleanroom equipment on white background

Key Points

Product Features and Selling Points

Designed for material and goods entry control

22-28 m/s clean air showering

Electronic interlock reduces unfiltered air entry

Manual, sliding, or rolling door options

Tunnel lengths and internal sizes can be customized

Applications

Where This Product Is Used

Material transfer entrances, cleanroom logistics areas, electronics plants, pharmaceutical workshops, food factories, and clean production corridors.

Customization

OEM and Custom Options

Manual double doors, automatic sliding doors, automatic rolling doors, cargo shower rooms, cargo shower tunnels, stainless steel versions, and powder-coated outer shell versions are available.

Product Images

Detail Views and Reference Photos

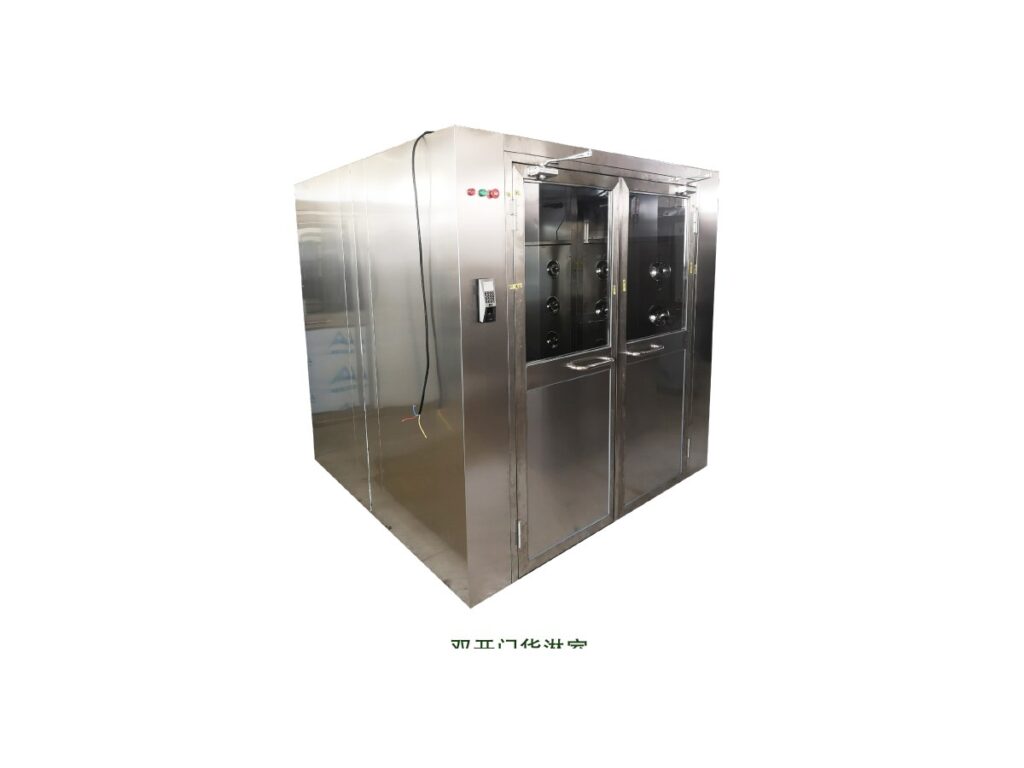

Cargo Shower Room product image — Cargo Shower Room

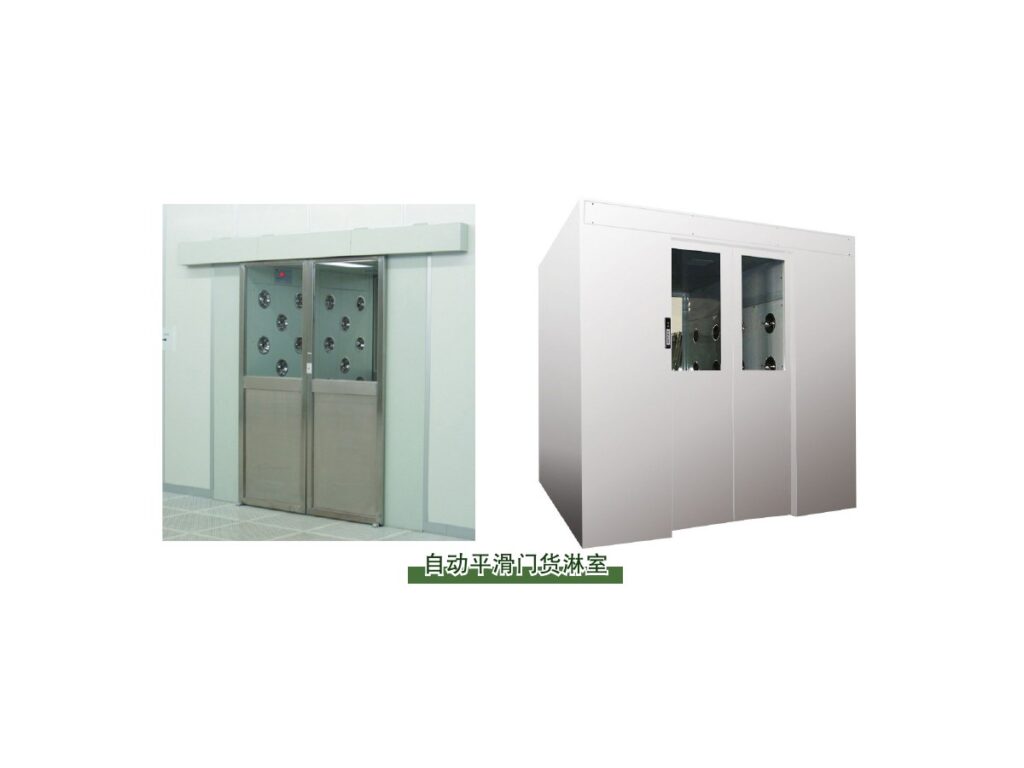

Cargo shower room door type reference — Cargo shower room door types

Specification Table

Technical Parameters

Model	1500 Cargo Shower	2000 Cargo Shower	Cargo Shower Tunnel	Custom
External Size W x D x H (mm)	2000 x 1500 x 2180	2000 x 2000 x 2180	2000 x 4000 x 2180	Custom
Internal Size W x D x H (mm)	1500 x 1380 x 1980	1500 x 1880 x 1980	1500 x 3880 x 1980	Custom
Air Velocity	22-28 m/s	22-28 m/s	22-28 m/s	Custom
Stainless Steel Nozzles	18 pcs	24 pcs	96 pcs	Custom
Shower Cycle	10-99 s adjustable	10-99 s adjustable	10-99 s adjustable	Custom
HEPA Filter Size	610 x 610 x 80 mm	610 x 610 x 80 mm	610 x 610 x 80 mm	Custom
HEPA Filter Efficiency	99.99% @ 0.5 um	99.99% @ 0.5 um	99.99% @ 0.5 um	Custom
Power Supply	380 V, 50 Hz, three phase	380 V, 50 Hz, three phase	380 V, 50 Hz, three phase	Custom
Fan Power	1100 W x 2	1100 W x 2	1100 W x 4	Custom
Fluorescent Lamp	8 W x 2	8 W x 2	8 W x 4	Custom

Source data translated and organized from the supplied PDF. The original sheet notes non-standard customization is available.

Product Details

Technical and Product Information

Cargo Shower Room is a cleanroom passage for goods. It reduces contamination from incoming materials and helps protect controlled areas by combining high-speed filtered air with door interlocking.
