Electronic interlock helps maintain cleanroom pressure separation
Cleanroom Equipment
Air Shower Room
Cleanroom entrance air shower for removing dust from personnel or goods before they enter controlled areas.
Key Points
Product Features and Selling Points
23-28 m/s high-speed clean air showering
201/304 stainless steel or powder-coated steel construction
Adjustable 10-99 second shower cycle
Non-standard sizes and layouts available
Applications
Where This Product Is Used
Cleanrooms, electronics factories, pharmaceutical facilities, food processing workshops, laboratories, HVAC clean areas, and production lines requiring contamination control.
Customization
OEM and Custom Options
Single-side, double-side, or three-side blowing; straight, L-shaped, S-shaped, U-shaped, stepped, personnel shower, cargo shower, and air shower tunnel configurations can be customized.

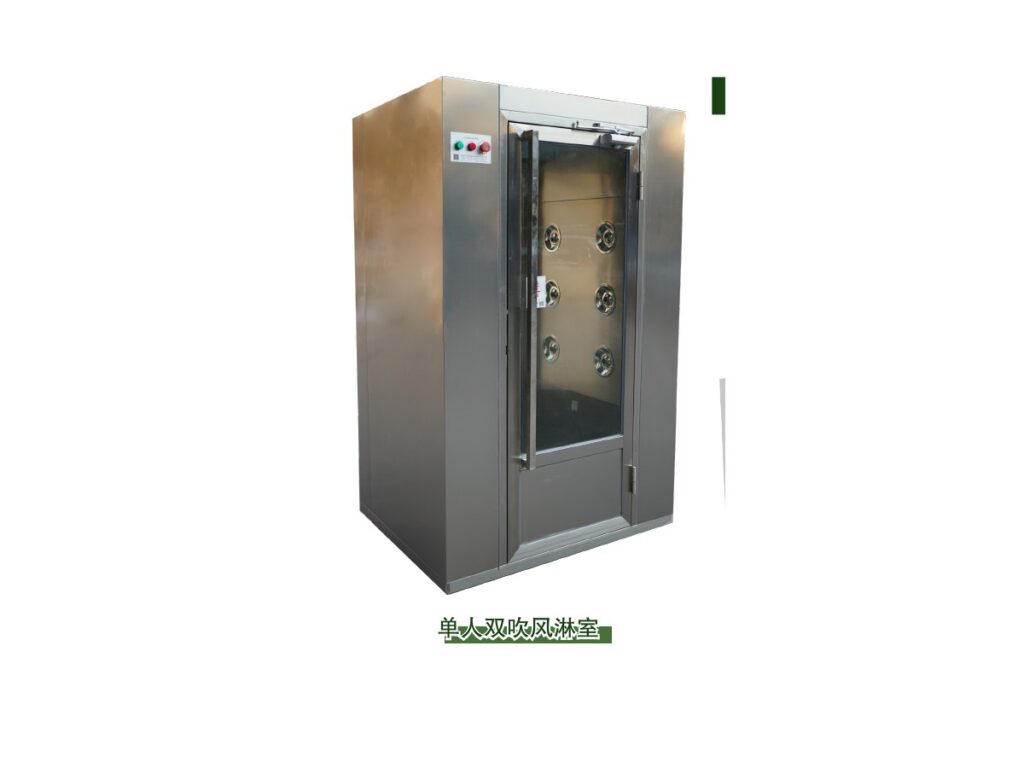

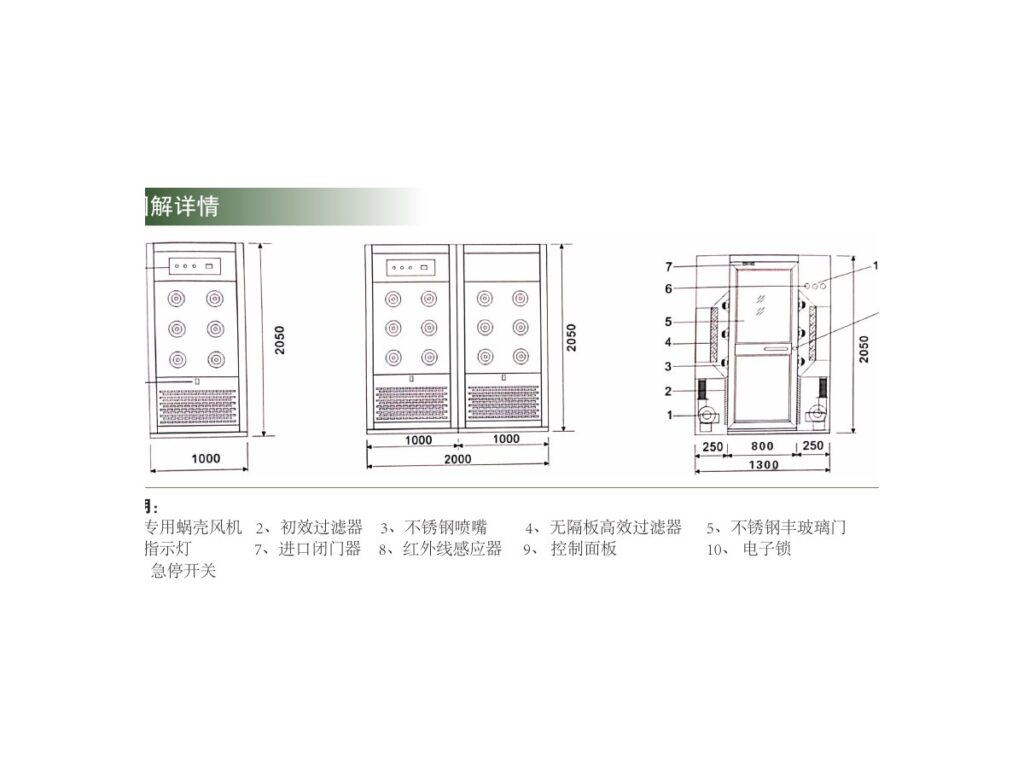

Product Images
Detail Views and Reference Photos
Specification Table
Technical Parameters
| Model | Single-Person Single-Side | Single-Person Double-Side | Two-Person Double-Side | Air Shower Tunnel |
|---|---|---|---|---|
| External Size W x D x H (mm) | 1150 x 1000 x 2050 | 1300 x 1000 x 2050 | 1300 x 2000 x 2050 | 1300 x 4000 x 2050 |
| Shower Area W x D x H (mm) | 800 x 960 x 1900 | 800 x 960 x 1900 | 800 x 1960 x 1900 | 800 x 3960 x 1900 |
| Air Velocity | 23-28 m/s | 23-28 m/s | 23-28 m/s | 23-28 m/s |
| Stainless Steel Nozzles | 6 pcs | 12 pcs | 24 pcs | 48 pcs |
| Shower Cycle | 10-99 s adjustable | 10-99 s adjustable | 10-99 s adjustable | 10-99 s adjustable |
| Noise | <65 dB at 1 m | <65 dB at 1 m | <65 dB at 1 m | <65 dB at 1 m |
| Filter Size | 595 x 595 x 46 mm | 595 x 595 x 46 mm | 595 x 595 x 46 mm | 595 x 595 x 46 mm |
| Filter Efficiency | 99.99% @ 0.5 um | 99.99% @ 0.5 um | 99.99% @ 0.5 um | 99.99% @ 0.5 um |
| Power Supply | 380 V, 50 Hz | 380 V, 50 Hz | 380 V, 50 Hz | 380 V, 50 Hz |
| Fan Power | 750 W x 1 | 1100 W x 1 | 1100 W x 2 | 1100 W x 4 |
| Fluorescent Lamp | 8 W x 1 | 8 W x 1 | 8 W x 2 | 8 W x 4 |
| Capacity | 1 person | 1-2 persons | 2-4 persons | 4+ persons |
Source data translated and organized from the supplied cleanroom accessories PDF. Casing can be 1.0 mm powder-coated cold-rolled steel or 201/304 stainless steel. Door options include stainless half-glass or full-glass observation windows.
Downloads
Technical Documents
PDF
WISHE_TECH_Air_Shower_Room_Specification
Enter your email address to download this product document.
Product Details
Technical and Product Information
Air Shower Room is installed between clean and non-clean areas to reduce contamination carried by personnel and materials. Clean air removes surface dust before entry while the electronic interlock works as an air-lock barrier.
